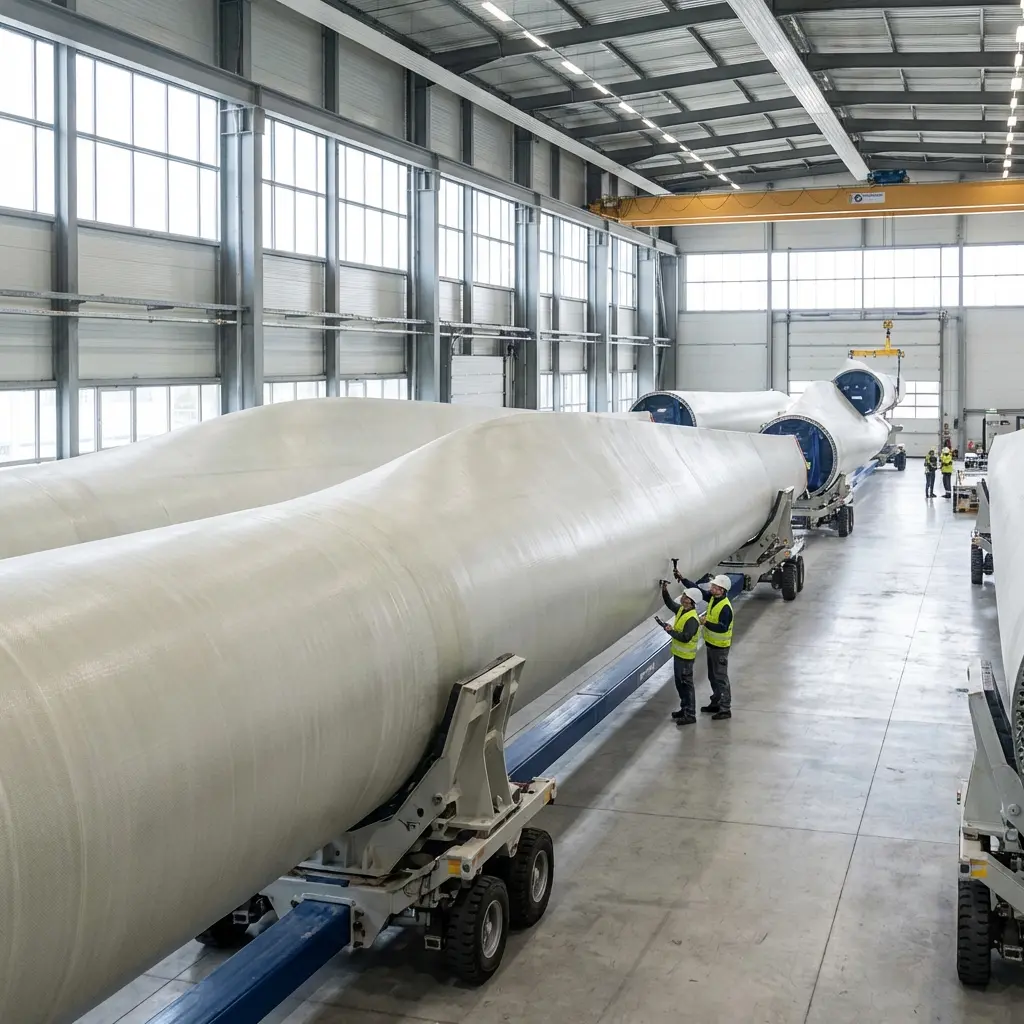

Wind Blade Composites
Triaxial (ELTX/ETTX) and Quadraxial (EQX) fabrics engineered for extreme mechanical loads, providing core structural support for blades.
Technical Protocol
Tech Specs & Details
Wind Blade Reinforcement Specs
Matrix Resins
Process & Performance
Heavyweight fabrics designed for multi-megawatt blades. Layer optimization reduces infusion risks and increases overall blade stiffness.
Specified Material
Triaxial Fiberglass Fabric
Triaxial fiberglass non-crimp fabric (NCF) — three layers of reinforcement with fiber orientations at 0°/+45°/-45° or 90°/+45°/-45°. Manufactured by Karl Mayer warp-knitting technology. This NCF triaxial fabric delivers superior structural performance for wind turbine blades, marine hulls, and aerospace composite parts.

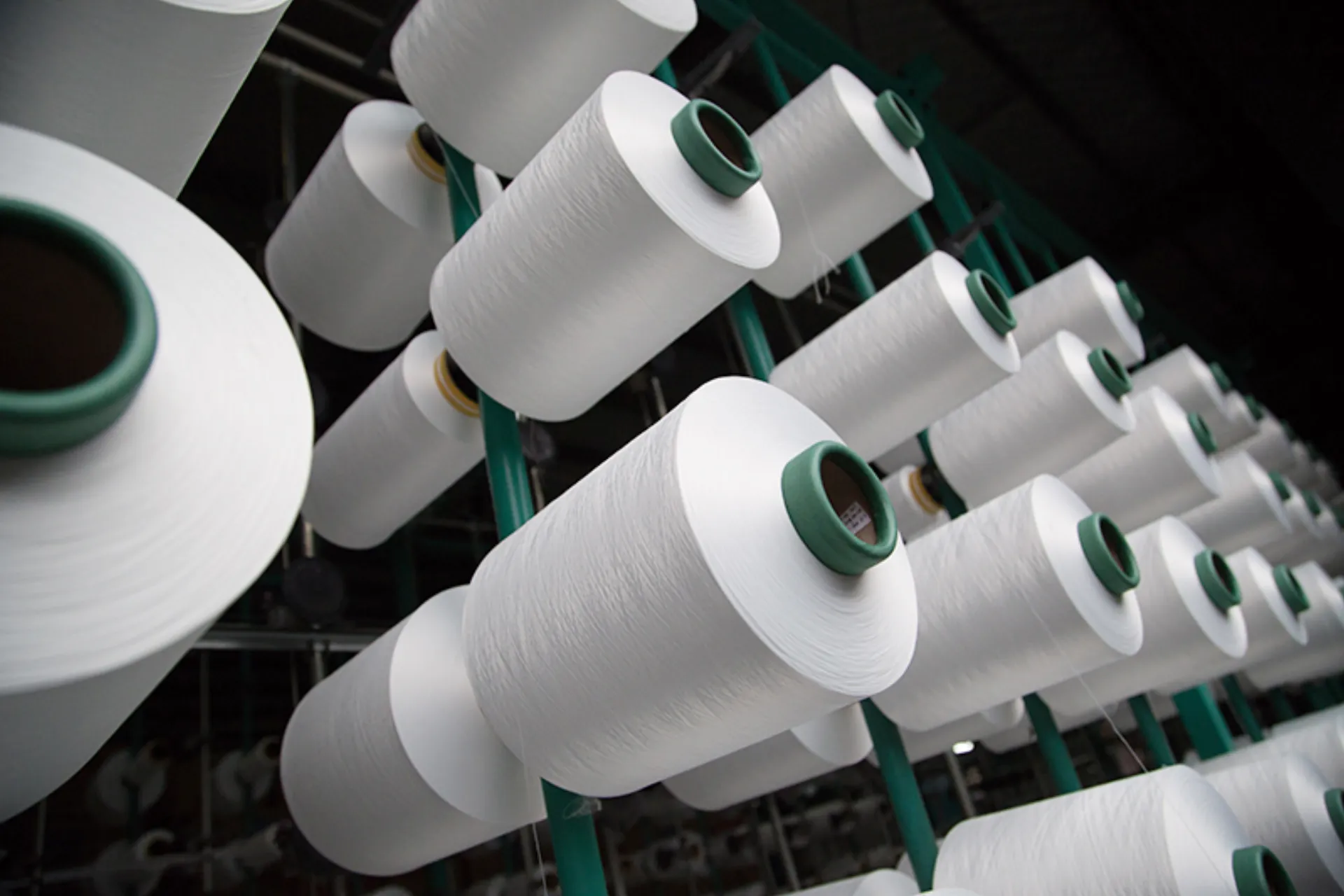

Internal Structure
Micro-alignment QC
Precise Knitting
Multi-layer fiber orientation controlled by Karl Mayer machines for optimal structural strength.
Rapid Wet-out
Optimized fiberglass sizing ensures extremely fast resin penetration, boosting production throughput.
Bespoke R&D
Tailor-made material structures based on specific mechanical requirements for optimal weight-strength ratios.
Related Industrial Solutions
Trenchless Rehabilitation (CIPP)
Leading Cured-In-Place Pipe (CIPP) solutions for trenchless pipe rehabilitation. Our ECR glass multiaxial and woven roving reinforcements provide superior chemical resistance and structural integrity for UV CIPP and spot repair applications.
Solar Mounts & Frames
Leveraging the high longitudinal strength of Single Warp fabrics (EL Series) for pultruded solar frames. A corrosion-resistant alternative to aluminum.
EV Battery Enclosures
Quadraxial NCF fiberglass fabrics (EQX series) combined with flame-retardant vinyl ester resins for EV battery enclosures, composite battery trays and BMS housing — delivering electrical insulation, impact resistance, and UL94 V-0 fire rating.
Marine & Yacht Building
Woven Roving and Biaxial fabrics (ELT/EBX) for high-performance hulls and decks, with high break strength to withstand water impact.
Partner with Material Experts
Our engineering team is ready to assist with custom fabric structures, providing full lifecycle support from design to process optimization.
